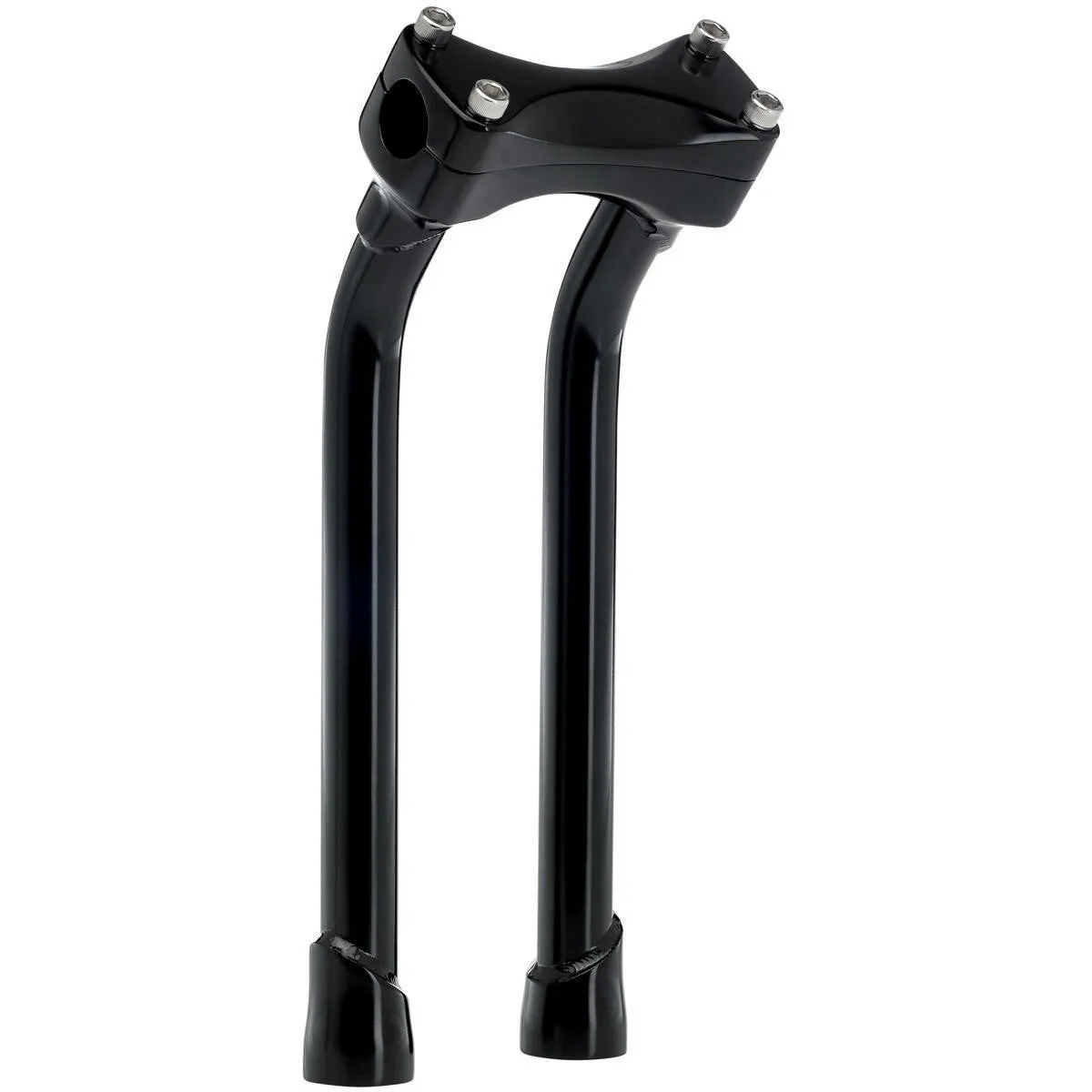

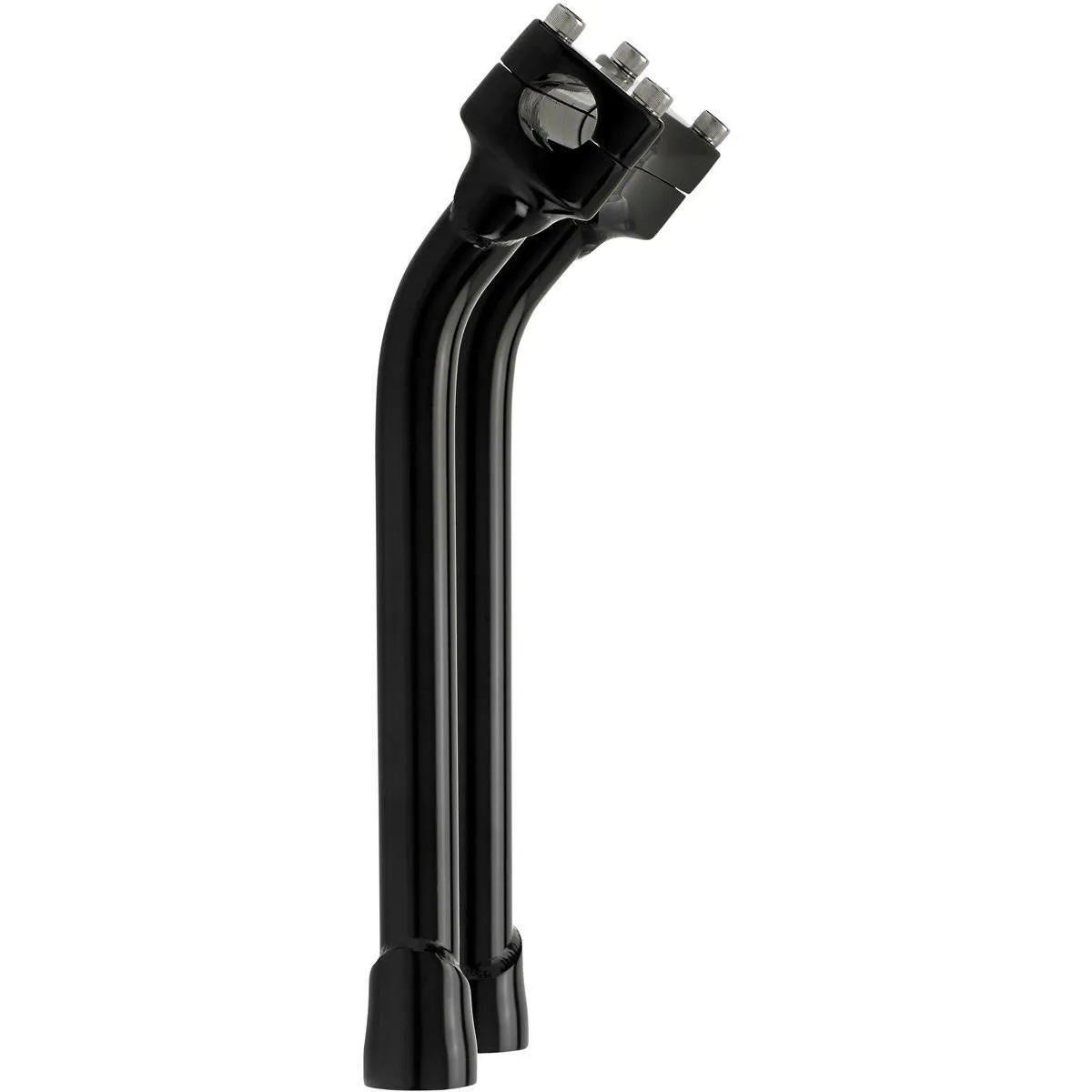

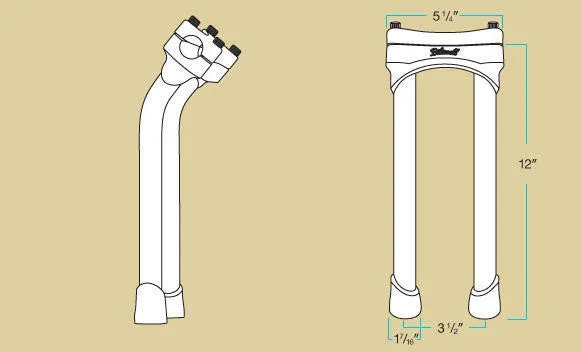

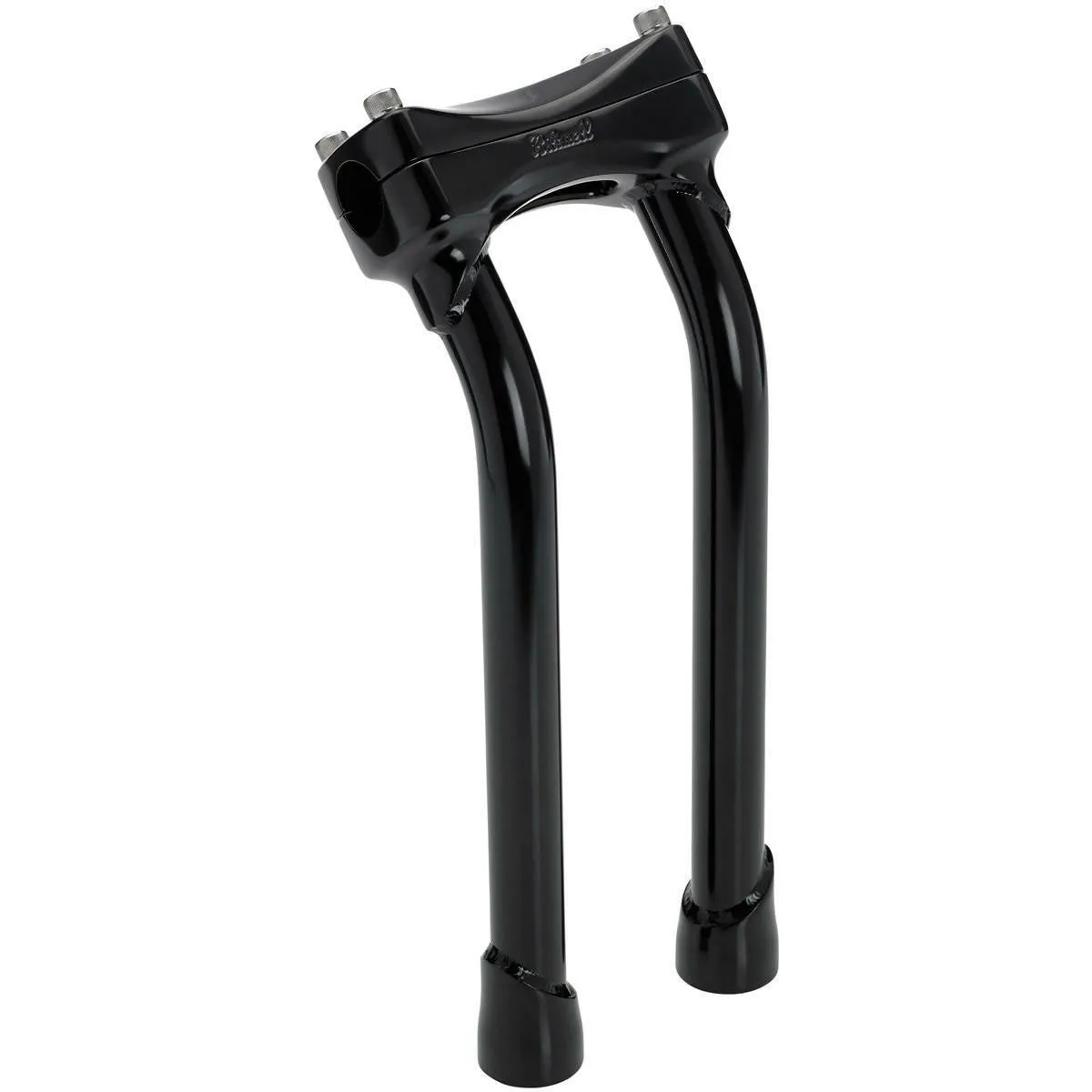

Overview: Murdock pullback risers are available in 8, 10, and 12 inch heights with 2” of back sweep. All Murdock risers feature investment-cast steel top clamps and lower threaded bases. They are connected by two 1-inch O.D. x 0.120” (3mm) wall seamless 4130 chromoly tubes. After TIG welding the finished unit is hand polished and triple chrome or satin black plated for style and durability. The threaded bases on Murdock risers are on 3.5” (89mm) centers to fit most stock and aftermarket H-D triple trees with removable bar clamps. Of course, the bolt pattern on these riser’s one-piece handlebar clamp fits most stock H-D speedo and tach brackets.

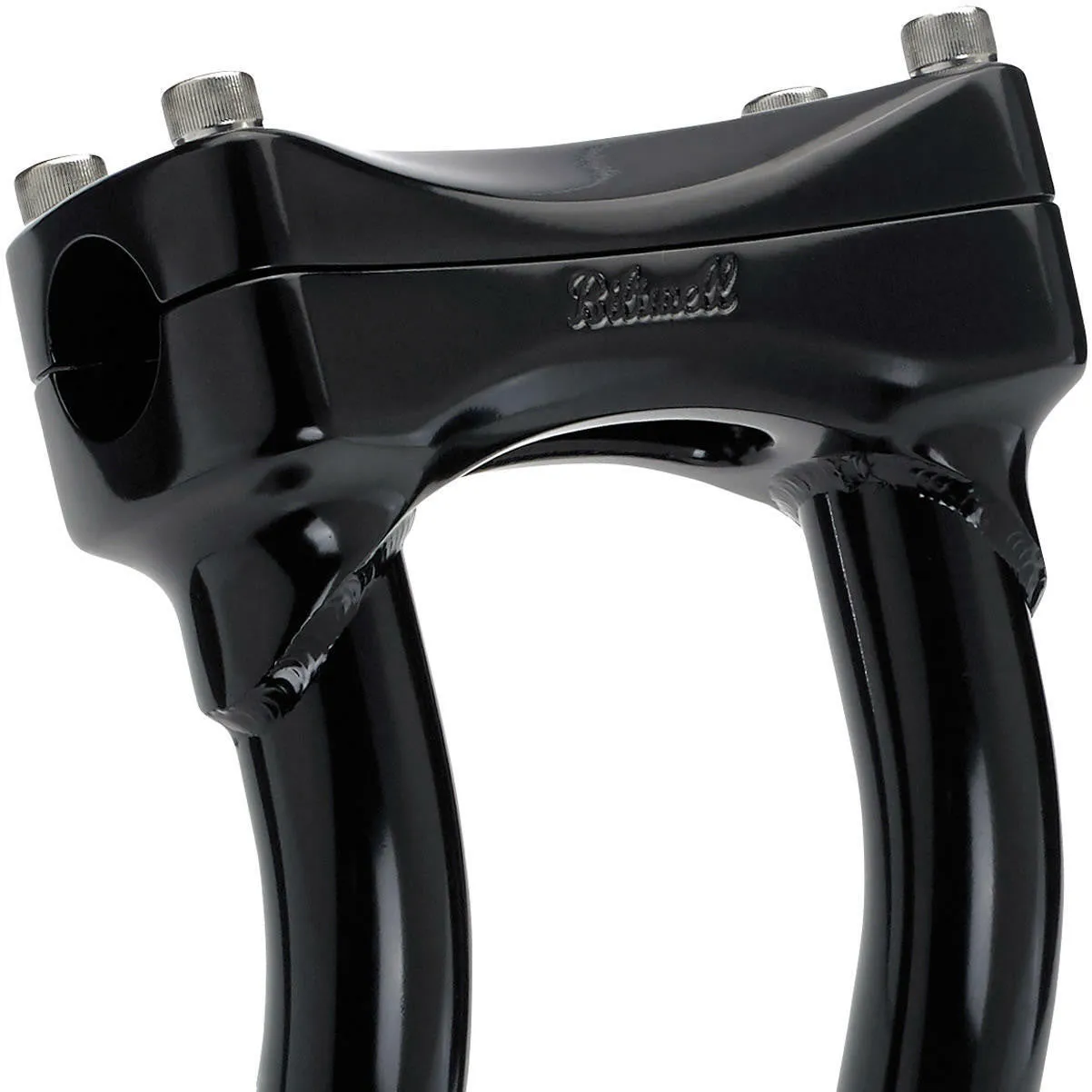

• Investment-cast steel one-piece top clamp and threaded lower mounting bungs
• 1/2-13 threaded holes on mounting bases accept stock H-D hardware
• TIG welded 0.120” wall 4130 chromoly steel uprights
• Handlebar clamp bolt pattern fits speedo/tach bracket on many stock Harleys
