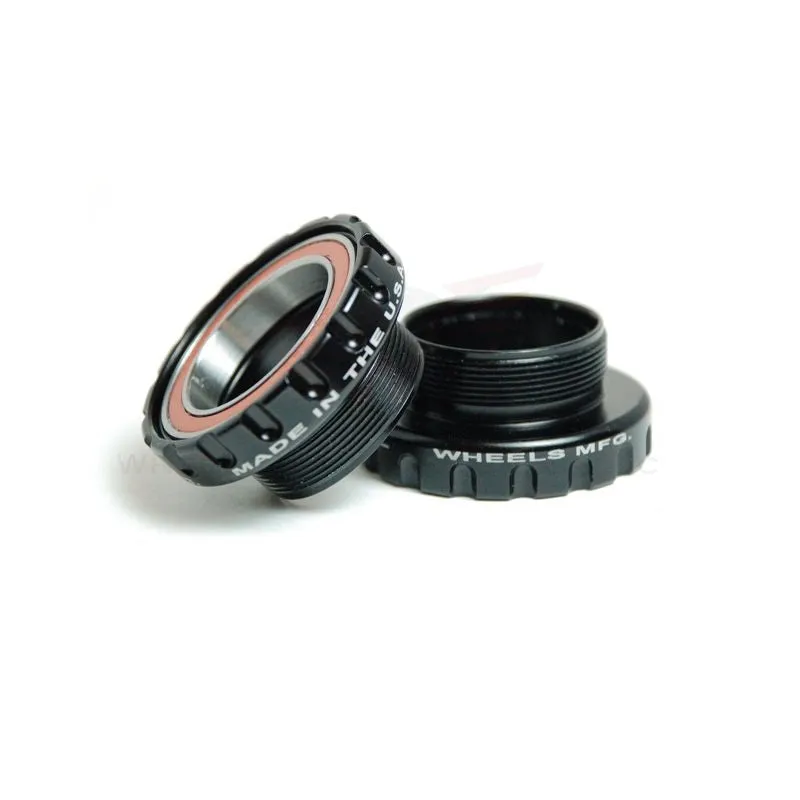

Our solution for running a 30mm spindle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 Ceramic Hybrid sealed bearings outboard of the BB shell. Fully serviceable.

• For use with 30mm diameter cranks with a spindle length of at least 104mm when used in a 68mm wide BB shell. This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.
• Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH! For use with BB30 WIDE 30mm diameter cranks with a spindle length of at least 104mm (BB30 Wide, BB30a, 386EVO, Rotor 3D , SRAM BB30 Wide).

Specifications
Bearings: Enduro 6806 Ceramic Hybrid
Color: Black
Bottom Bracket/Frame Interface: ISO/English or BSA Threaded (1.37 in x 24 TPI)
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 33.6-33.9 mm
Crank Spindle Diameter: 30mm
Crank Spindle Length: At least 104mm*
Over Bearing Width: 91.5mm in a 68mm wide shell*

Mfr Claimed Weight
94g
